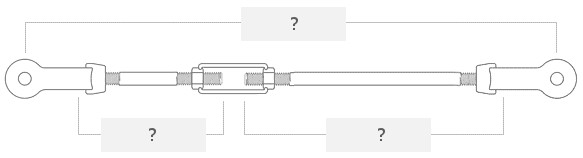

If you have a pin-to-pin length for your tie rod assembly, and need to know the length of the rod (or rods), this tool is for you! Please fill out our short form to proceed to the tool.Tie rod drawings will often specify an overall length from the center of each clevis pin hole, without detailing the required rod length. We have created a tool that will quickly estimate rod lengths for three different tie rod configurations. Whether you have a simple two clevis rod or clevises with a turnbuckle and different rod lengths, we’ve got your answer.

Tool Features

• Identifies the correct clevis number based on diameter
• Helps calculate rod lengths for single, even, and fixed length assemblies
• Saves time hand calculating tie rod assemblies

Often tie rod drawings will specify an overall length from the center of each clevis pin hole, without detailing the required rod length. This tool will quickly estimate rod lengths for three different tie rod configurations. Whether you have a simple two clevis rod or clevises with a turnbuckle and different rod lengths, we’ve got your answer.
